Bottle Cap (Autodesk Inventor 2013)

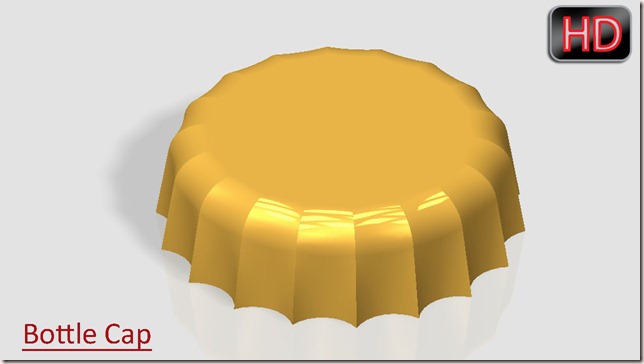

Bottle Cap

In this video viewer will be able to watch Basic Sketching features of Autodesk Inventor like; Circle, Arc, Circular Pattern . Other than this surface tools like Boundary Patch, Surface Loft, Sculpt are presented as well as Loop Fillet, Shell, Appearance Settings- lightening and half section view setting  are displayed. So watch the video and if you find interesting Like it and Share it.

Video Screen Shots





Bottle Cap (Deformation effect as after using an Opener)

This can be done by creating a line over the top of the model and using it as a base by Bend Tool.
 Bottle Cap (Deformaton effect as after uaing an Opener)

download-Link



Click the following link to get the model file: - http://a360.co/1FCmsTO
