Engine Sleve Rear (Video Tutorial) SolidWorks 2015

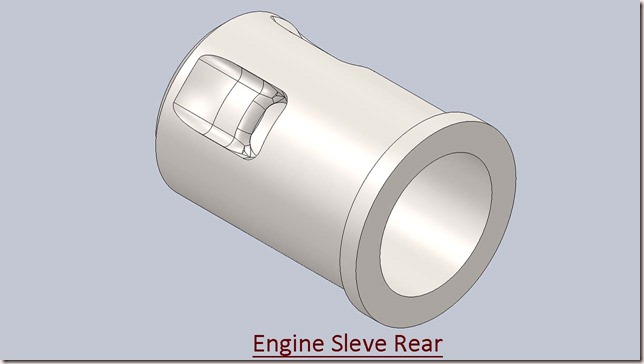

Engine Sleve Rear_1

Engine Sleve Rear_2

Serial No. 164

Engine Sleve Rear (Video Tutorial) SolidWorks 2015

The Design of ‘Engine Sleve Rear’ has been taken from Assembly file of ‘Rear Exhaust-2 Shoe' of Sample files of Autodesk Inventor, it is a fragment of ‘Engine MKII’ Assembly.

In this SolidWorks Tutorial we will describe how to build the model of ‘Engine Sleve Rear’. It is a part modeling tutorial, it will cover the following topics.

  • Creating 2D Sketches on different Planes and faces of the model.
  • Use the sketch constraints with the help of ‘Add Relation’ tool that are applied on during sketch creation.
  • Use feature commands such as, Extruded Boss/Base, Extruded Cut, Revolved Cut, Swept Cut, Mirror, Chamfer and the fillet tool.
  • Adds the angle to the Revolved Cut feature to revolve the profile through the specified angle.
  • Adds the Swept Cut feature on the basis of Profile and Path option.

download-Link



Click the following link to get the model file: -http://a360.co/1Ol7zvL
