Tuned Pipe 2 (Video Tutorial) SolidWorks 2015

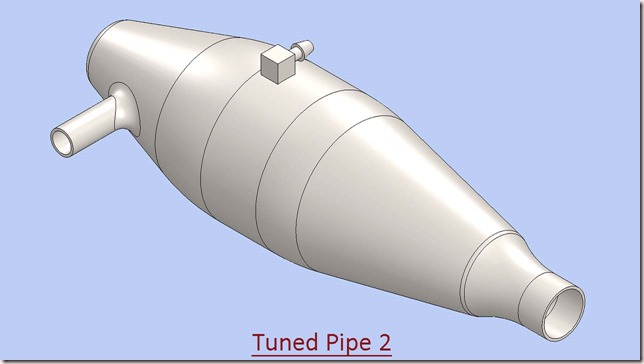

Tuned Pipe 2_1

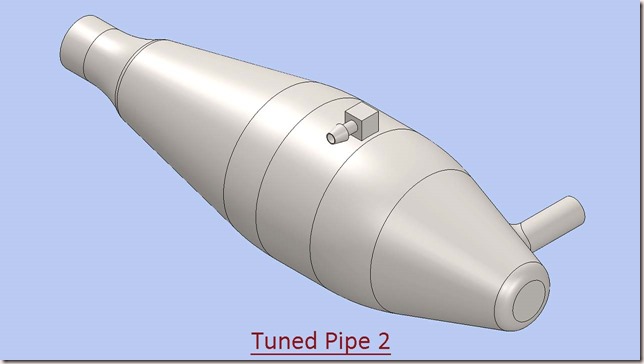

Tuned Pipe 2_2

Serial No. 158

Tuned Pipe 2 (Video Tutorial) SolidWorks 2015

The Design of ‘Tuned Pipe’ has been taken from Assembly file of ‘Rear Exhaust-2 Shoe' of Sample files of Autodesk Inventor, it is a fragment of ‘Engine MKII’ Assembly.
In this SolidWorks Tutorial we will describe how to build the model of ‘Tuned Pipe’. It is a part modeling tutorial, it will cover the following topics.
  • Creating 2D Sketches on different Planes and faces of the model.
  • Creating a work plane tangent to circular surface and parallel to plane.
  • Use the sketch constraints by using Add Relation tool that are applied on during sketch creation.
  • Use feature commands such as Extruded Boss/Base, Revolve Boss/Base, fillet and the Shell command.

download-Link



Click the following link to get the model file: - http://a360.co/1NdtG5A
