Engine MKII (SolidWorks 2015 Tutorial)


Serial No. 178

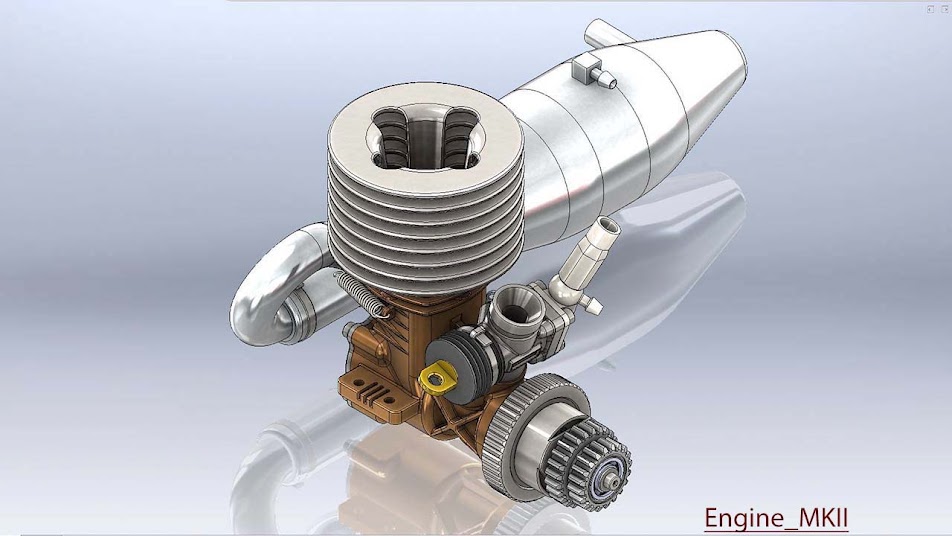

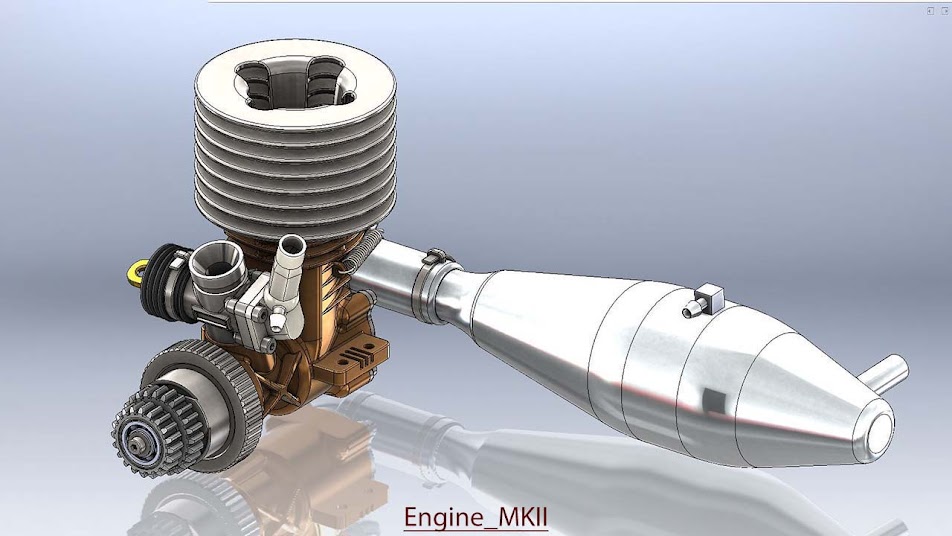

Engine MKII (SolidWorks 2015 Tutorial)

The Design of the model ‘Engine MKII’ → ‘Rear Exhaust-2 Shoe’ has been taken from ‘Sample files’ → Autodesk Inventor

In this SolidWorks Tutorial we will describe how to build the model ‘Engine MKII’ assembly file. It is an Assembly modelling tutorial, it will cover the following topics.

  • Use the Assembly commands such as, Insert Components, Mate, Circular Component Pattern, and Move with Triad tools etc.
  • 38 Parts will be inserted with the help of ‘Insert Components’ tool.
  • Use the Concentric, Coincident, Distance and Angle constraints between the two components with the help of ‘Mate’ tool.
  • Copy the one or more components by using the ‘Circular Component Pattern’ command in the assembly environment.
  • Check the interference between the two components by using ‘Interference Detection’ tool.
  • Save as Display State to view the internal components of engine easily.
  • Animate the internal components of Engine in the Motion Study environment.

download-Link



Click the following link to get the model file: -http://bit.ly/2pPLamr



……………………………………………………………………………………………………………………………………………………
