Serial No. 287-F

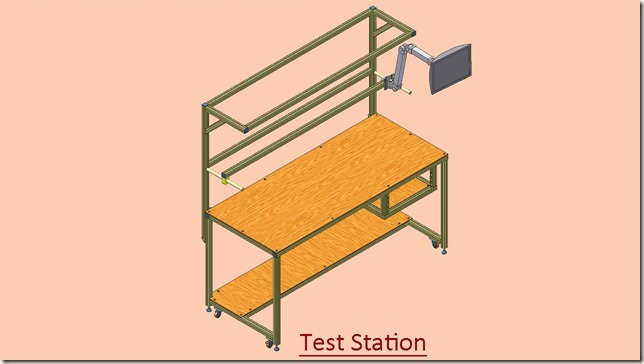

Test Station (Volume-6) Autodesk Inventor 2016 Tutorial
The Design of model ‘Test Station’ has been taken from → ‘Sample files’ → Autodesk Inventor.
There are some other Subassemblies of parts, associated with this model which are previously displayed in Volumes 1 to 5.
Swing Arm of Stand of Monitor is also designed in this video.
Table of this model is constructed by channel frame which facilitate to dismantle in a very easy manner by using nut, bolt and other joining fixtures. This is a good practice to make robust joints and is also movable with the aid of wheels.
Click the following link to get the model file: - http://bit.ly/2npUHzI
