UNF Thread Profile External & Internal (Solid Edge ST9 Tutorial)

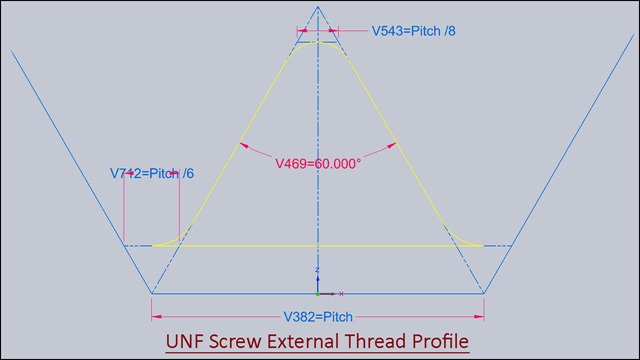

UNF Screw External Thread Profile

UNF Screw Enternal Thread Profile

Serial No. 10

UNF Thread Profile External & Internal (Solid Edge ST9 Tutorial)

In this video we create a Unified National Fine Thread Profile (External & Internal) using the Sketch Equation through Solid Edge. The Pitch of the thread is 1/20 inch.



download-Link

     Click the following link to get the model file: - http://bit.ly/2IzbvLV
