Gate Valve (Video Tutorial) SolidWorks 2014

Gate Valve_1

Gate Valve_2

Serial No. 54

Gate Valve (Video Tutorial) SolidWorks 2014

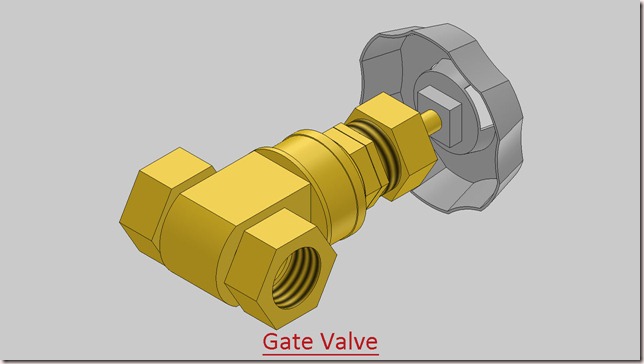

This Solidworks Assembly tutorial which also covers topics from Solidworks Basics, displays a creation process of an assembly named ‘Gate Valve’.

The assembly of the model contains six parts and ‘Top-Down’ design process is displayed which means the parts of the assembly is created, in the beginning and all the other part are created in reference to the first part. The advantage of this designing process is that less amount of work is needed when re-edits are done. Because part are designed in context of other parts a change in a specific part changes other part in the assembly.

In creation process of this model application of many part modeling tool like Boss Extrude/Cut, Shell, Mirror, Revolve and working and creating different planes etc. are displayed. To know more watch the tutorial.

download-Link



Click the following link to get the model file: - http://a360.co/1yJYZhp
