Mounting Bracket through Sheet Metal (Siemens NX 1855 Tutorial)

Serial No. 131

Mounting Bracket through Sheet Metal (Siemens NX 1855 Tutorial)

The Design of this model is selected from 'Sample files' of Autodesk Inventor.

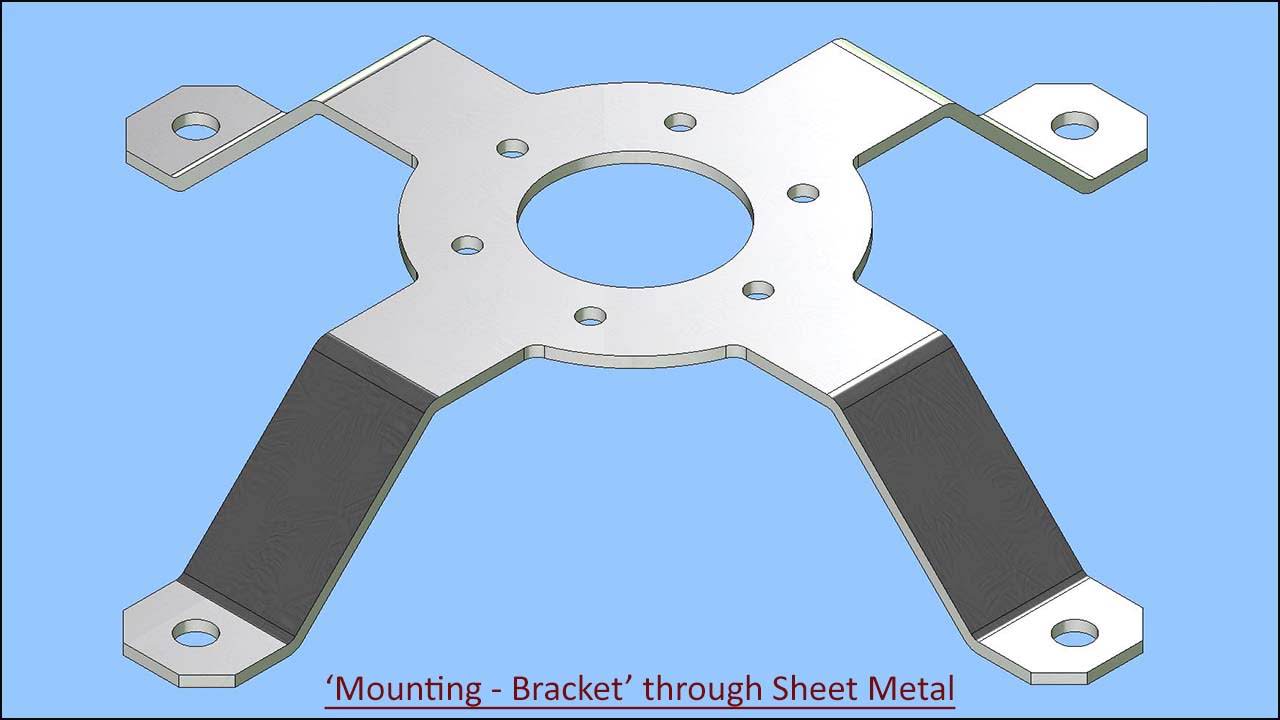

This Siemens NX tutorial displays the modelling process of a 'Mounting Bracket' model which is created by using Sheet Metal functionality.

In this lesson, you create a sheet metal part. This lesson demonstrates:---

  • Creating a base Tab feature.
  • Adding a Flange.
  • Adding a Contour Flange.
  • Adding a Break Corner.
  • Mirroring a sheet metal feature.
  • Adding and bending a tab.
  • Using 'Normal Cut-out' command.
  • Create a flat pattern feature from the form sheet metal part.
  • Create a drawing view of this model by using 'Base View'.
  • Create a drawing view of flat pattern feature.





Click the following link to get the model file: - https://bit.ly/2KUYQUu





.........................................................................
