Screw Driver (Solid Edge ST9 Tutorial)

Screw Driver_1

Screw Driver_2

Serial No. 28

Screw Driver (Solid Edge ST9 Tutorial)

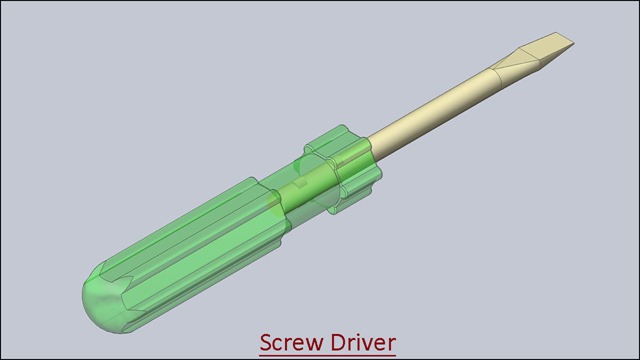

In this Solid Edge Tutorial we will describe how to build the model ‘Screw Driver’. The edge of screw driver and handle has been constructed by different surface tools. It is a Part and Assembly modelling tutorial. This assembly consist 2 part files Screw Driver and Handle that are positioned according to design intent by using Assembly Constraints.

It will cover the following topics.

........................................................................................................

• Creating 2D Sketches on different Planes.

• Use some sketch constraints as Connect, Horizontal/Vertical, and Equal etc. that are applied on during sketch creation.

• Use solid and surface feature command such as Revolved (Surface), BlueSurf, Bounded, Stitched, Extrude, Cut, Circular Pattern, Loft, Mirror Copy Feature, Union, Round etc.

• How to change the color of the model by using ‘Part Painter’ tool.

• How to insert component into the assembly using drag and drop from parts library by using ‘Insert Component’ command.

• How to mate the parts by using ‘Flash Fit’ command in the assembly.

• How to lock the rotation of the component by using ‘Lock Rotation’ option in ‘Flash Fit’ command in the assembly.

• How to rotate and moving part by using ‘Drag Component’ command.
