Combination Pliers with Animation (Solid Edge ST9 Tutorial)

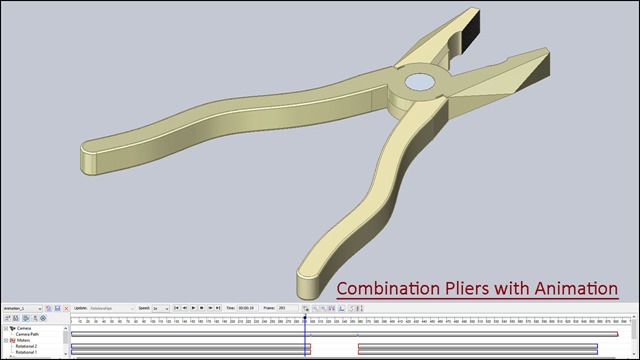

Combination Pliers with Animation


Serial No. 13

Combination Pliers with Animation (Solid Edge ST9 Tutorial)
In this video we will describe you how to rotate the Combination Pliers by using ‘'Rotational Motor’ command. When you click the Simulate Motor command, the Motor Group Properties dialog box is displayed so you can specify which motors you want to use, the default duration, and other similar options. When you click OK, the Animation Editor is displayed so you can run the simulation. To run the simulation, click the Play button.
It will cover the following topics.
........................................................................................................
• How to mate the parts in the assembly.
• How to mate the parts by using ‘Flash Fit’ command in the assembly.
• How to animate the Plier in Explode-Render-Animate environment
• How to create the custom named views by using ‘View Orientation’ command.
• How to set the camera view by using ‘Camera Path Wizard’.




download-Link

Click the following link to get the model file: - http://bit.ly/35cOQ1T
