Propeller (SolidWorks 2015 Tutorial)

Serial No. 228

Propeller (SolidWorks 2015 Tutorial)

The Design of ‘Propeller’ has been taken from Assembly of 'Blower' → ‘Sample files’ → Autodesk Inventor.
_____________________________________________________________

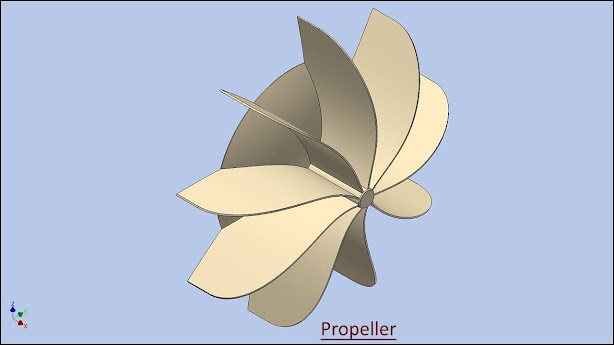

In this SolidWorks tutorial we will describe how to build the model of ‘Propeller’. It is a part modeling tutorial, it will cover the following topics.
________________________________________________________
• Creating 2D Sketches on different Planes of the model.
• Use the sketch constraints with the aid of ‘Add/Relation’ tool that are applied on during sketch creation.
• Use feature commands such as Extruded Boss/Base, Extruded Cut with ‘Flip side to cut’ option, Circular Pattern, Revolved Surface, Revolved Boss/Base, Thicket and the Fillet tool.
• Use Circular Pattern tool to create multiple instances of one feature.
