Chain-Inventor Studio (Upgraded Design) - Autodesk Inventor 2013

Chain-Inventor Studio (Upgraded Design)

Serial No. 220

Chain-Inventor Studio (Upgraded Design) - Autodesk Inventor 2013

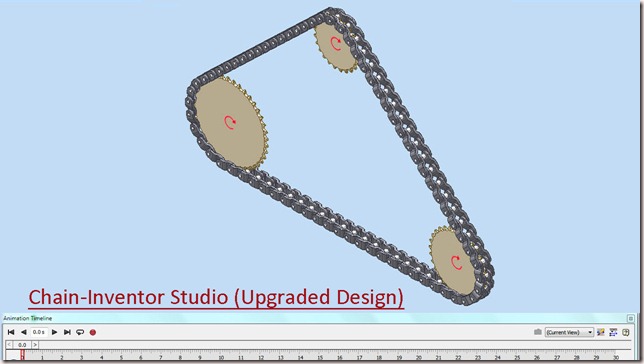

This video displays a setting up of 70 chain links and 3 sprockets along a defined paths in Autodesk Inventor’s  Assembly modelling environment.  First of all some base sketching afterward some advance pattern, adaptive features and assembly mates are to be applied to set up an animation matching the real world scenario… Later the whole mechanism consisting of required mates are driven by using Inventor Studio functionality of the software……



download-Link



Click the following link to get the model file: -http://a360.co/1N0FHrQ
