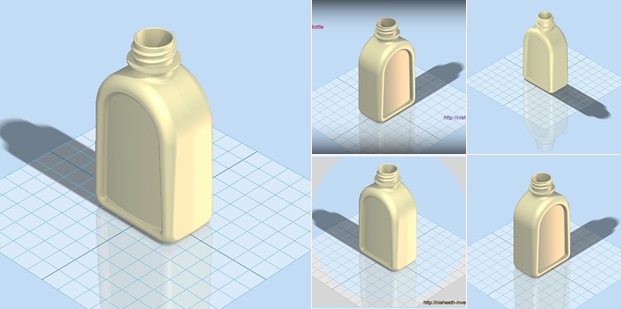

Plastic Bottle (Autodesk Inventor 2012)

This model has been taken by the book Autodesk Inventor Essential. Re-modelling and rendering is done by us.We recommend to read the book for better understanding the video and learning the Autodesk Inventor Software. Visit the following link to know more about the book---
http://nisheeth-inventortalks.blogspot.in/p/other-learning-resources.html



By watching the video the viewers will see the application of following features/tools of Autodesk Inventor:--

Extrude (surface/solid), Face draft, Edge Fillet and it’s tab (Constant tab,Variable tab,Setbacks), Face fillet, Full round fillets,Replace face, Mirror (mirror solid option), Shell, Coil, Revolve (Using Open Profiles), Cross Section Analysis etc.

Watch the full modelling process of the model below

Click the following link to get the model file: -http://bit.ly/2o8UQYt
